Your position: Home > Category > GALAXY high power series MPPT solar controller > IPANDEE 80A 384VDC Galaxy Series MPPT solar controller for off-grid system 33kw
IPANDEE 80A  384VDC Galaxy Series  MPPT solar controller for off-grid system 33kwIPANDEE 80A  384VDC Galaxy Series  MPPT solar controller for off-grid system 33kwIPANDEE 80A  384VDC Galaxy Series  MPPT solar controller for off-grid system 33kwIPANDEE 80A  384VDC Galaxy Series  MPPT solar controller for off-grid system 33kwIPANDEE 80A  384VDC Galaxy Series  MPPT solar controller for off-grid system 33kw

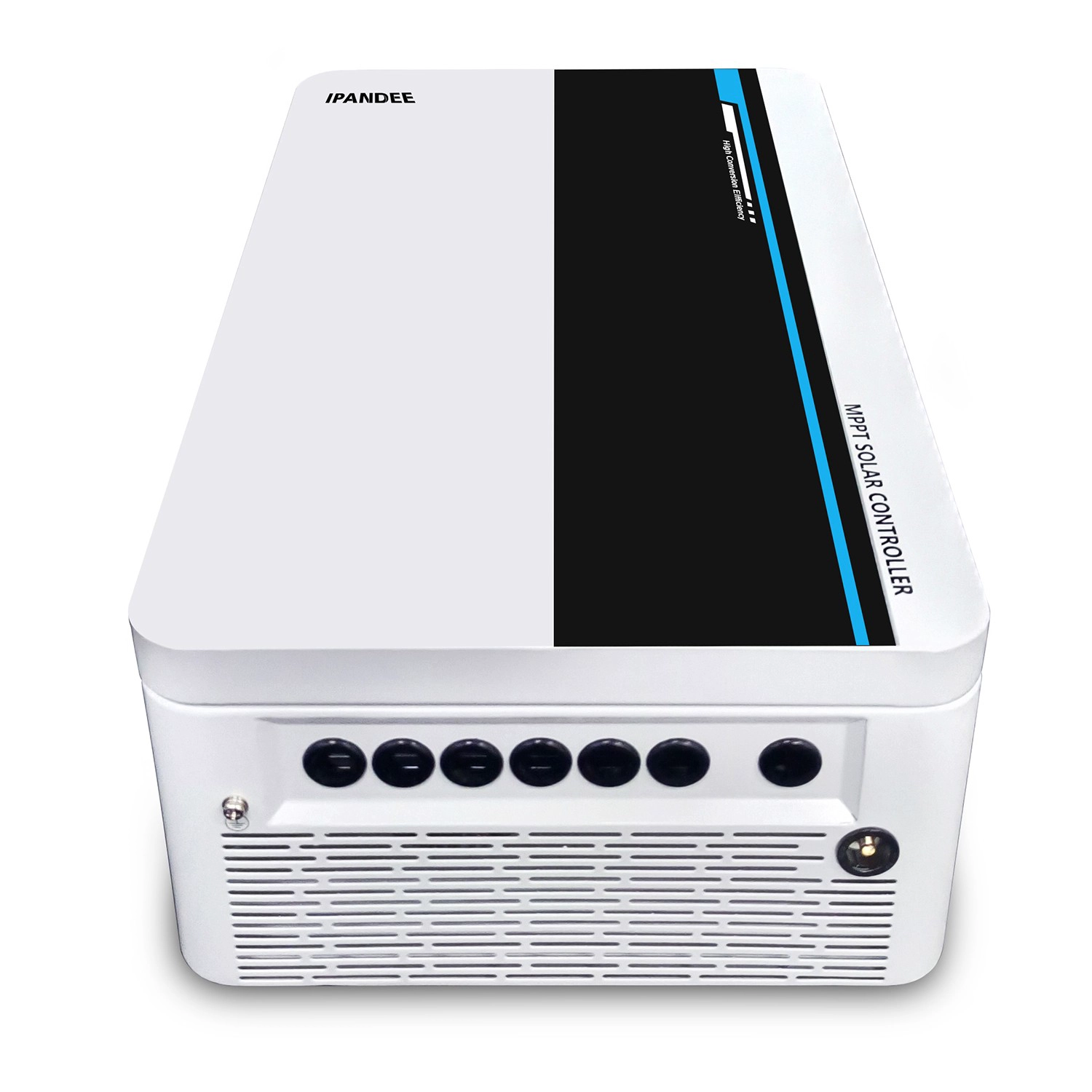

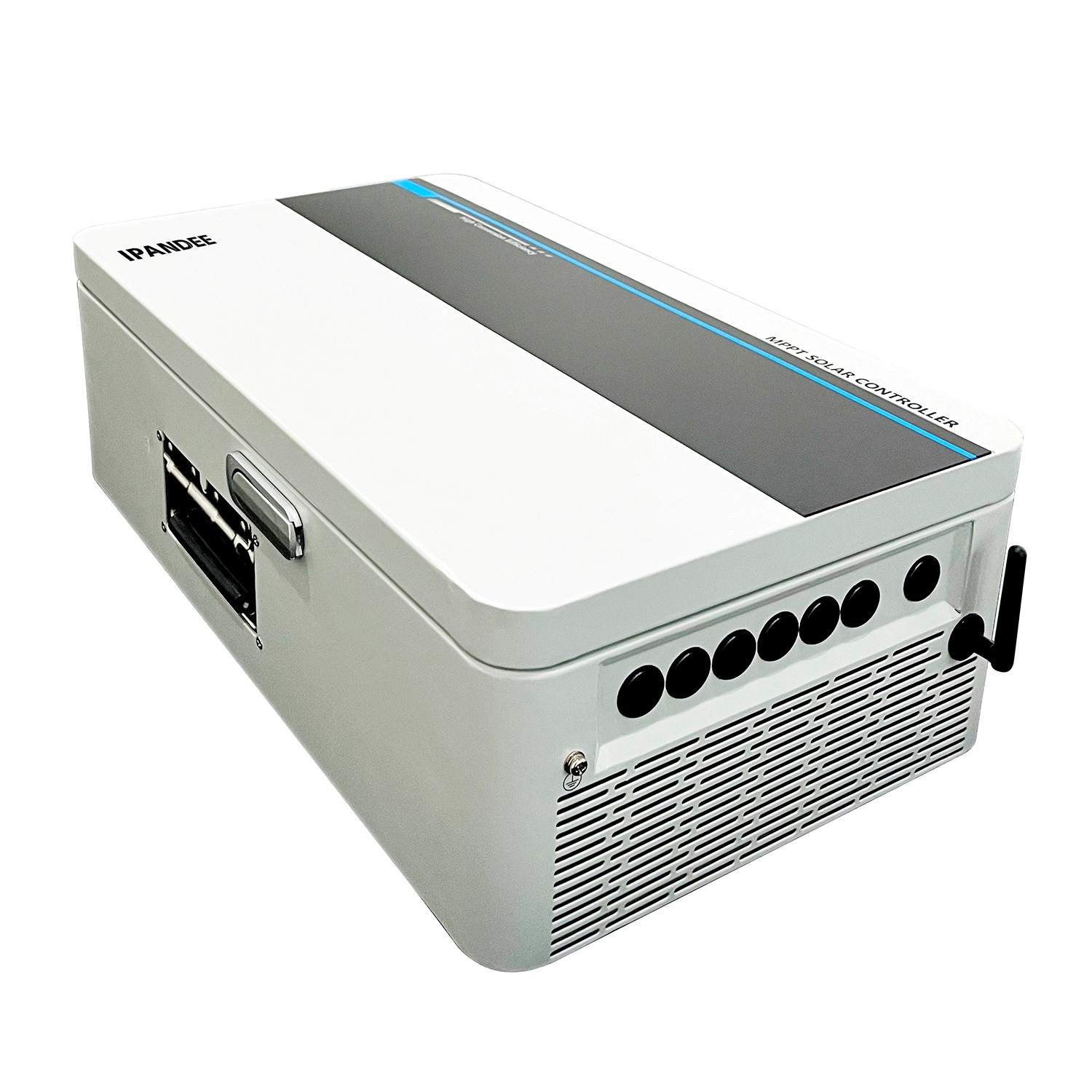

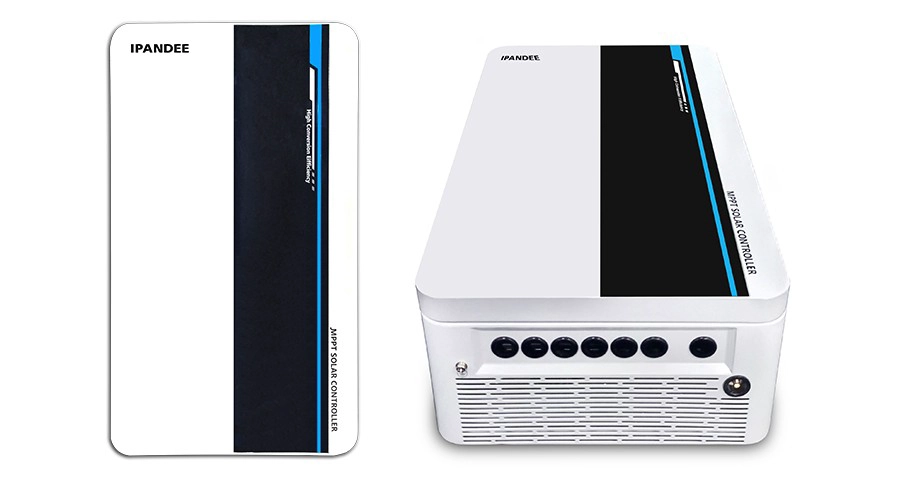

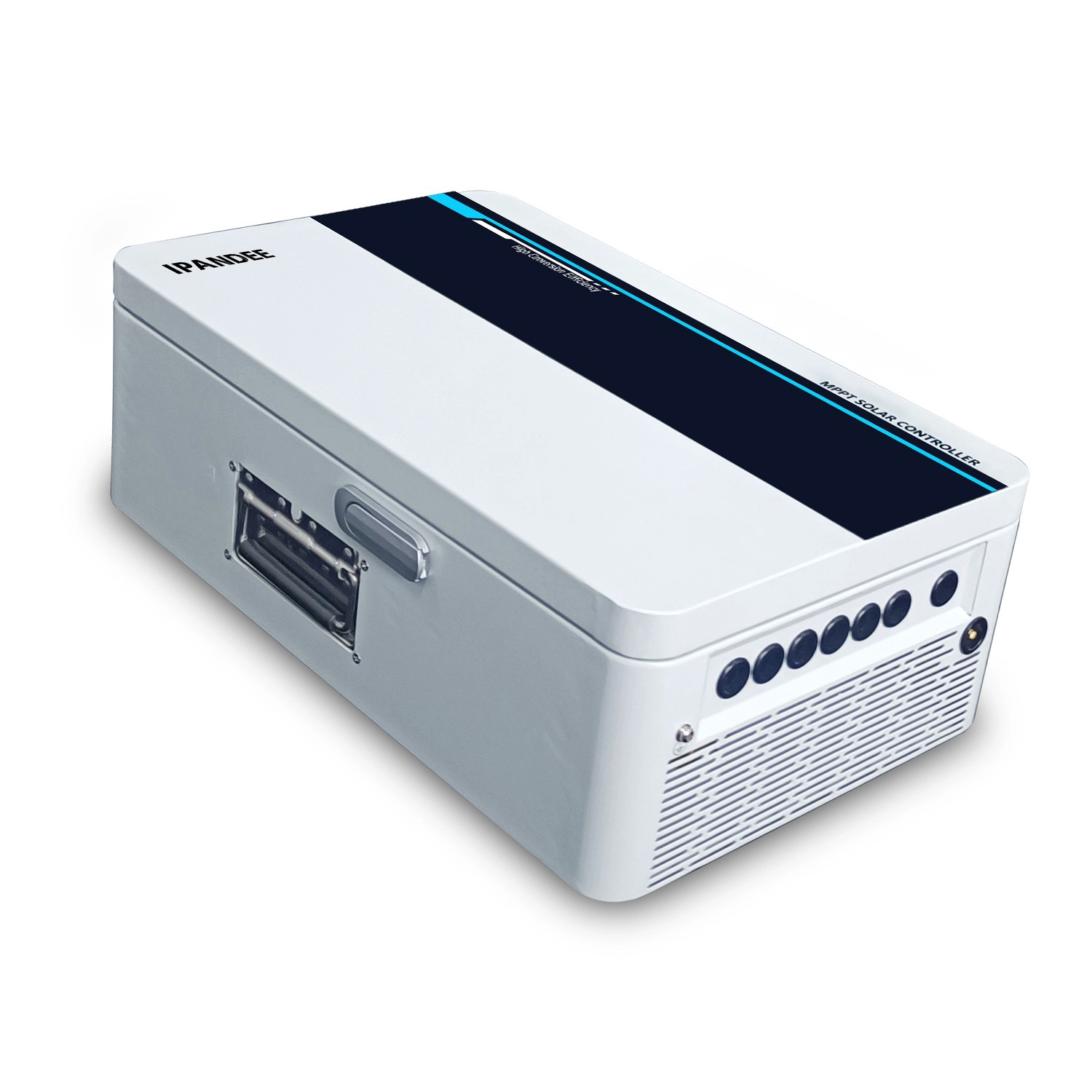

IPANDEE 80A 384VDC Galaxy Series MPPT solar controller for off-grid system 33kw

  • Model:GALAXY
  • System Voltage: DC96V/192V/216V/240V/384V Automatic Recognition
  • Rated Current: 50A;60A;70A;80A;100A
  • Maximum PV(voc) Voltage: 430V/850V



High Power and Voltage 96V 192V 216V 240V 384V MPPT solar controller




GALAXY series is a Maximum Power Point tracking(MPPT) function with high efficiency MPPT charge controller,It has many advantages such as wide rang of PV input, charger voltage can be set, RS485 or RS232 (optional) and LAN communication port. Modular design,Small volume, light weight, high conversion efficiency. It is the most high-end product in solar market.






Product   Model



 Model  Battery system   Max. PV input voltage   Rated current
 GALAXY-B96-XXA  96V(8*12V) 430V  70A;80A
 GALAXY-B192-XXA  192V(16*12V) 430V  50A;60A
 GALAXY-B216(220)-XXA  216V(18*12V)
 GALAXY-B240-XXA  240V(20*12V)
GALAXY-B384-XXA  384V(32*12V) 850V  70A;80A


Feature
1.It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%,and converter efficiency up to 98%.
2.Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
3.Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control .
4.Three kinds of commonly used lead-acid battery (SealGelFlooded) parameter settings fcan be selected by the user, and the user can also customize the parameters for other battery charging.
5.It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.
6.Support multi - machine parallel to realize system power upgrade.
7.High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.
8.RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development.
9.Support PC software monitoring and WiFi module to realize APP cloud monitoring.
10.CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications.
11.2 years warranty, and 2~10 years extended warranty service also can be provided.

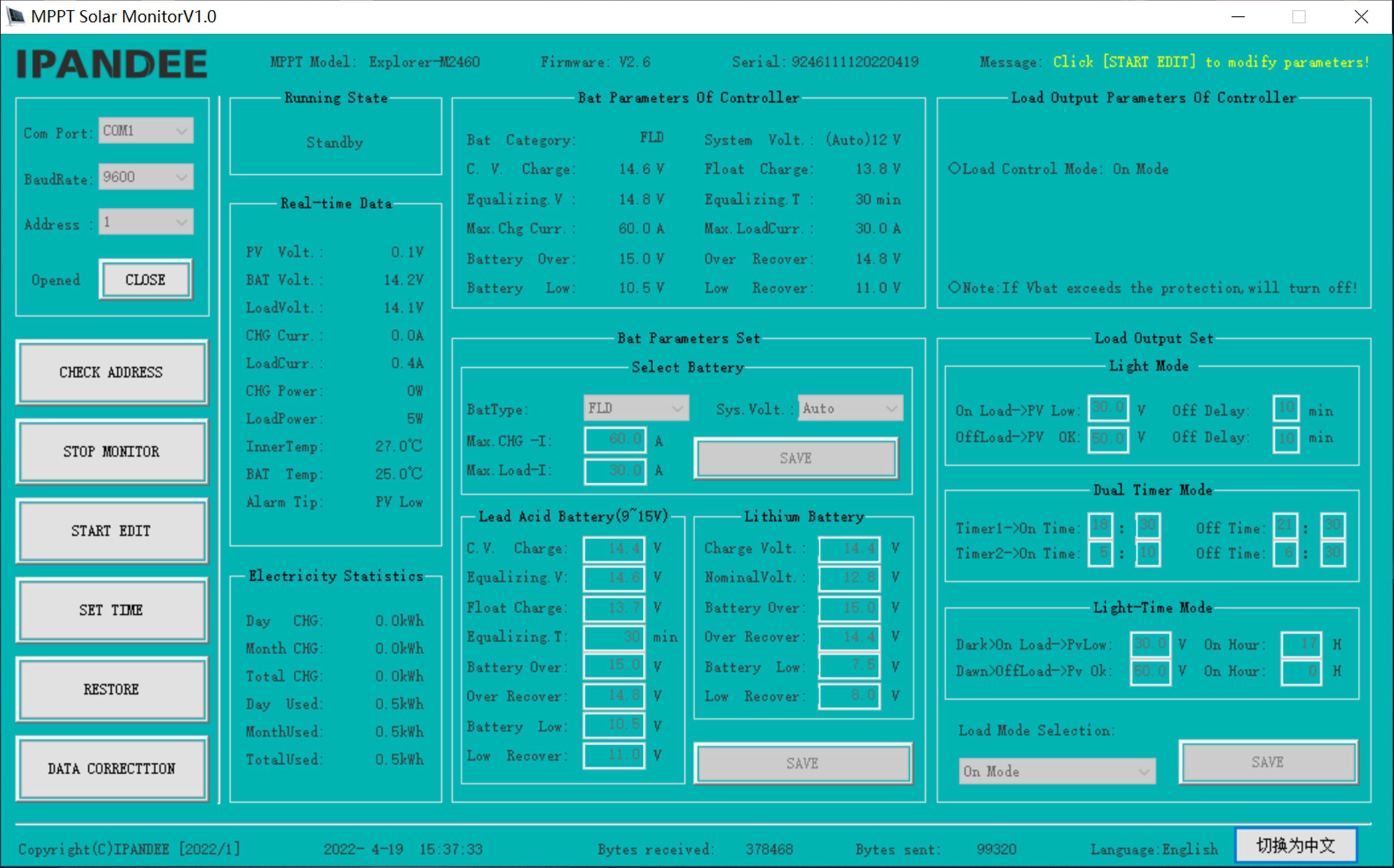

PC software, Monitoring software, display and set the parameter



                                                                    PC software

Display charge and discharge status, PV voltage, Charge voltage, Charge current etc. And the related parameter can be set.


Parameter



GALAXY Series B96 B192B216(220)B240
Power model 70A 80A 100A 50A 60A 70A 80A 100A
Product category Controller Properties MPPT (maximum power point tracking)
MPPT efficiency ≥98% ≥98% ≥98% ≥98% ≥98% ≥98% ≥98% ≥98%
System voltage DC96V DC192VDC216V(DC220V)DC240V
Range of Videntification DC72V~DC128V DC144V~DC256VDC162V~DC288VDC180V~DC320V
Heat-dissipating method Intelligent fan cooling
Input Characteristics Open circuit Vmax-pv DC430V DC430V DC430V DC660V DC660V DC660V
Start charge Vstart-pv Vbat+20V Vbat+20V Vbat+20V Vbat+20V Vbat+20V Vbat+20V Vbat+20V Vbat+20V
Low protection Vlow-pv Vbat+10V Vbat+10V Vbat+10V Vbat+10V Vbat+10V Vbat+10V Vbat+10V Vbat+10V
Over protection Vover-pv DC430V DC430V DC430V DC430V DC430V DC660V DC660V DC660V
Rated PV power 7280W 8320W 10400 10400W 12480W 14560W 16640W 20800W
11700W 14040W 16380W 18720W 23400W
13000W 15600W 18200W 20800W 26000W
Charge Characteristics Selectable Battery Types Sealed lead acid, Gel battery, Flooded (Other types of the batteries also can be defined)-- Default Gel battery
Charge rated current  70A 80A 100A 50A 60A 70A 80A 100A
Charging Method  3-Stage: constant current(fast charging)-constant voltage-floating charge
LOAD Characteristics Load voltage The same as the battery voltage The same as the battery voltage
Load rated current 70A 80A 100A 50A 60A
Load control mode OnOff mode, PV voltage control mode, Dual-time control mode, PV + Time control mode
Display & Communication Display mode LCD128*64 dots/ backlight display
Communication mode 8-pin RJ45 port/RS485/support PC software monitoring/support WiFi module to realize APP cloud monitoring
Other Parameters Protect function Input-output over under voltage protection, Prevention of connection reverse protection etc.
Operation Temperature  -20℃~+50℃
Storage Temperature -40℃~+75℃
IP(Ingress protection) IP21
Net Weight (kg)  14.7kg 14.7kg 18.8kg
Gross Weight (kg)  16.6kg 16.6kg 20.6kg
Product Size(mm) 371*500*187 371*500*187 391*500*227
Packing Size(mm) 590*420*270 590*420*270 590*440*320

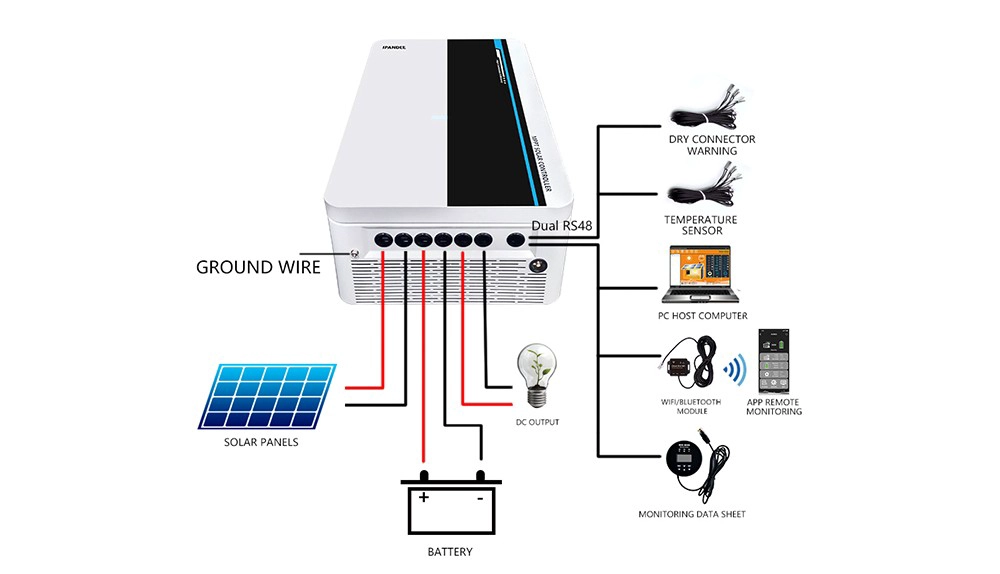

System connection diagram

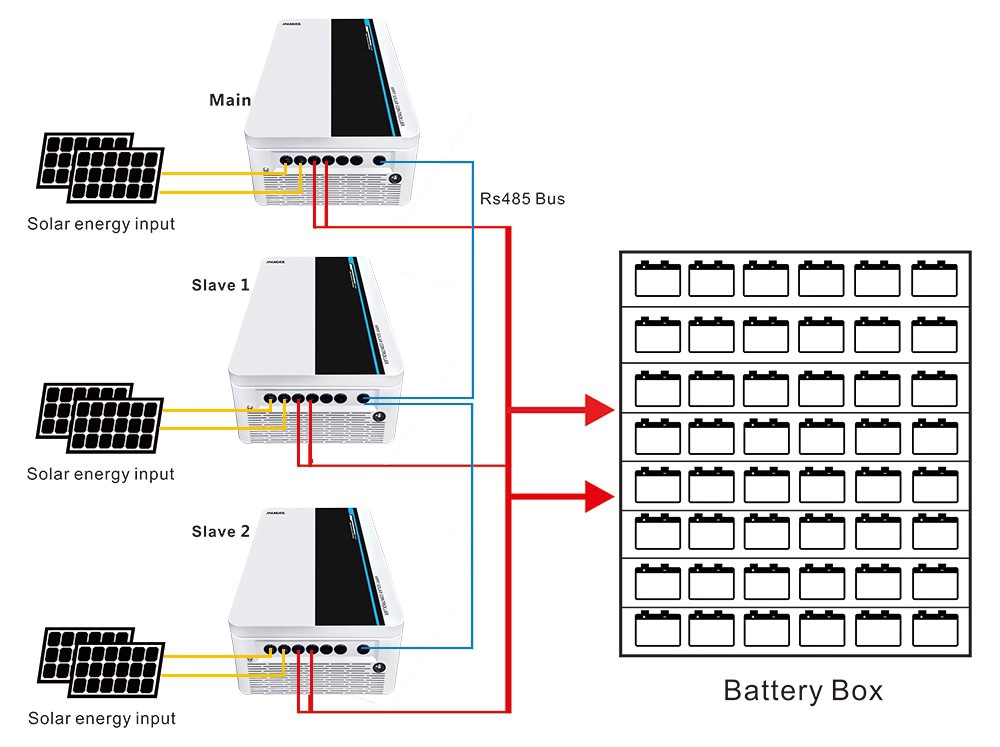

Parallel connection diagram



Remark: Above is company’s standard parameters, any modify please check our official website.
