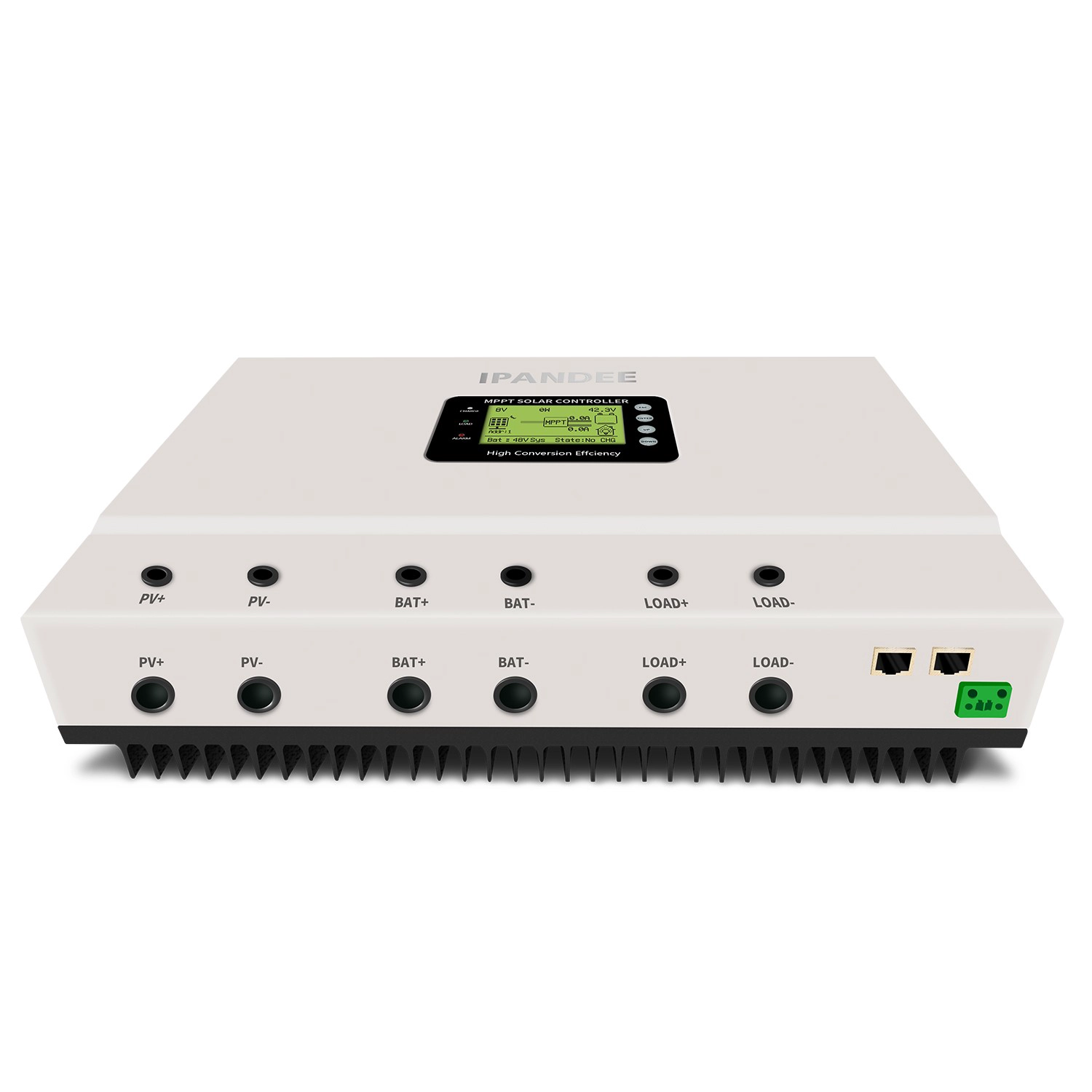

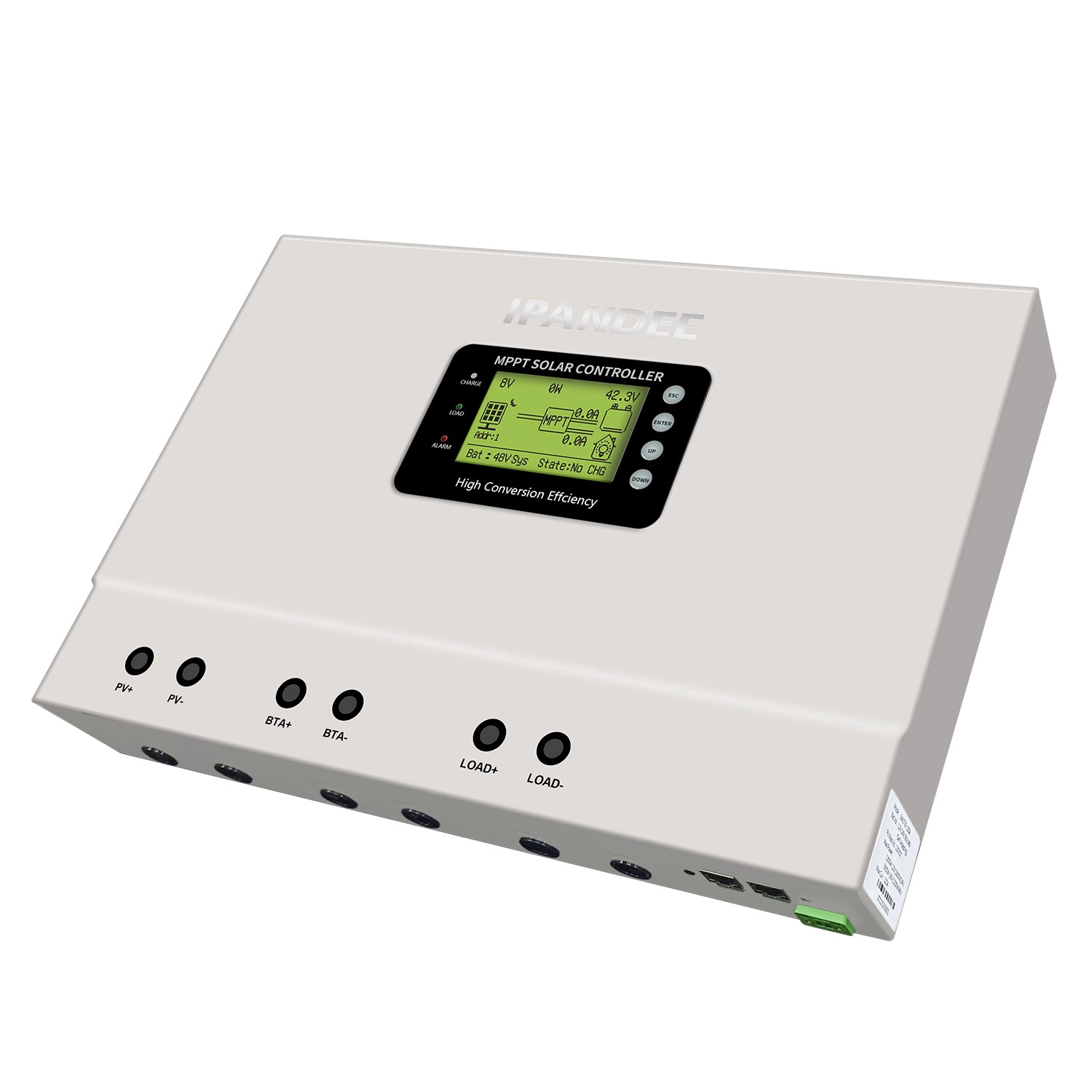

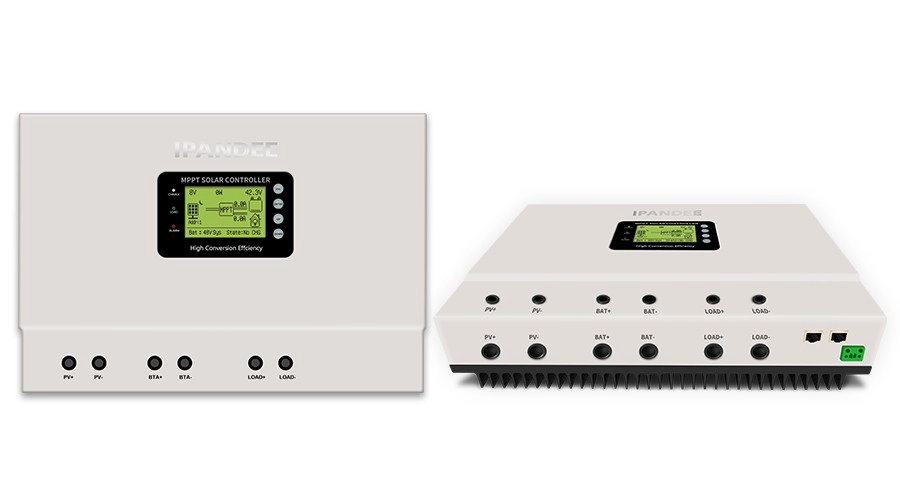

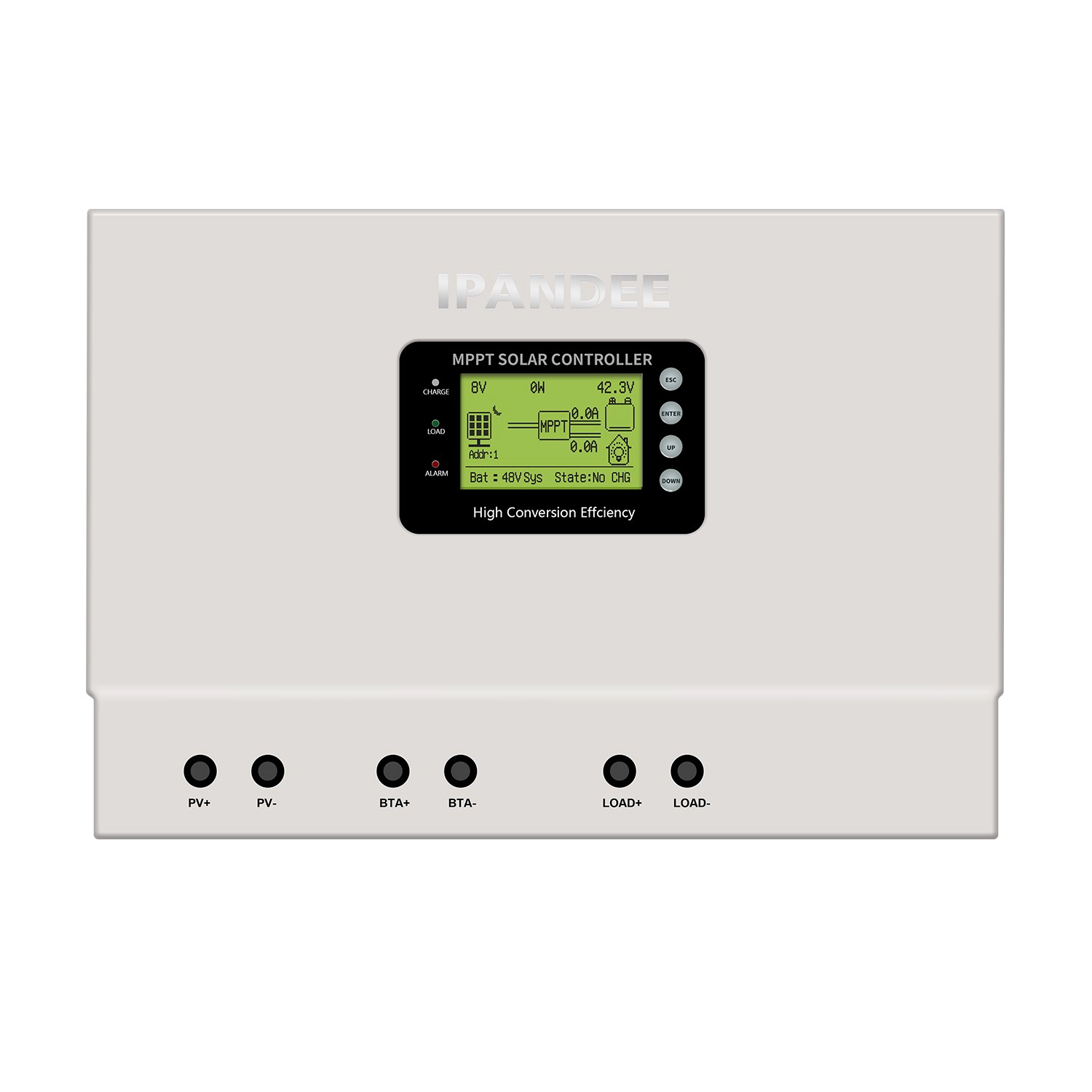

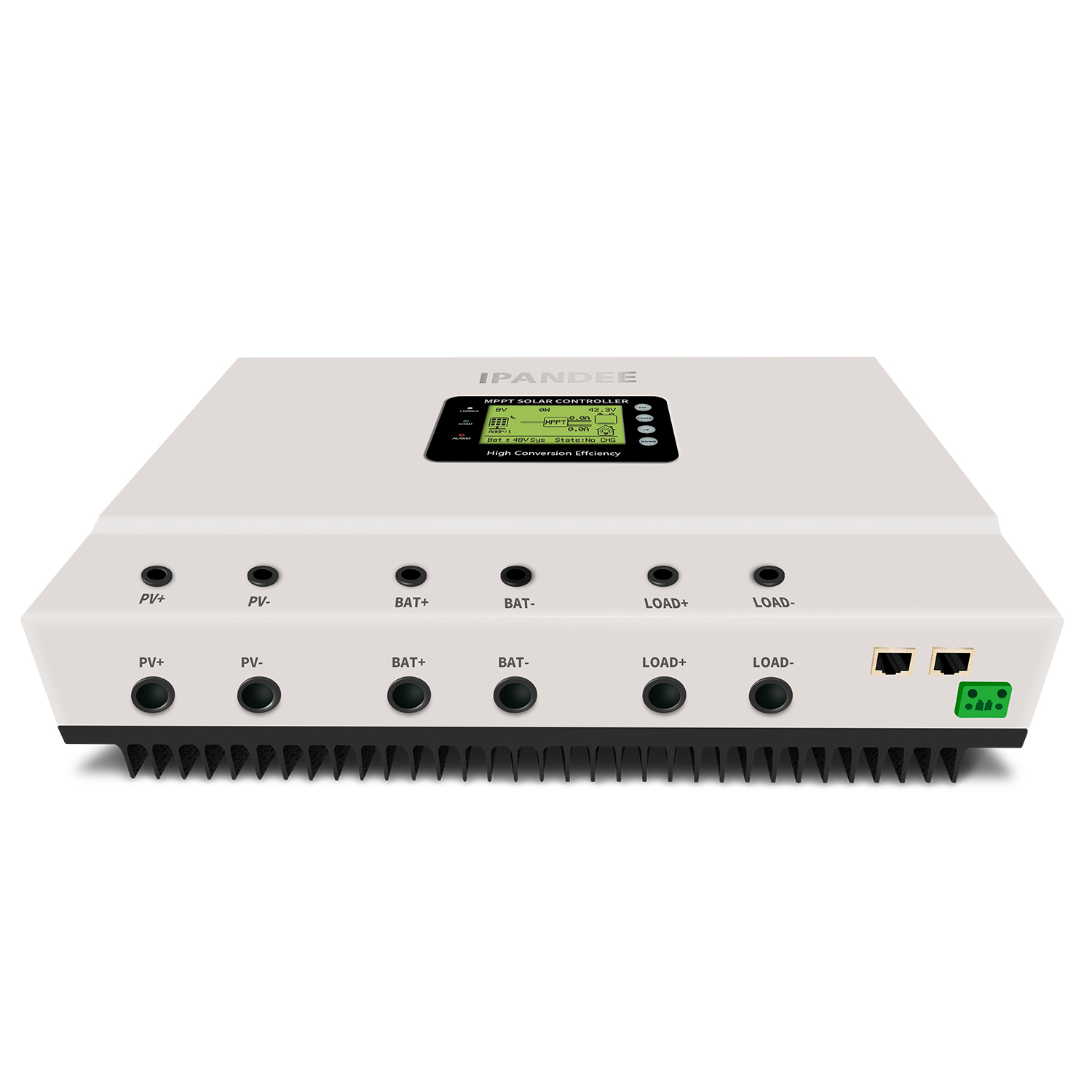

Ipandee Master 12V/24V/36V48V 80A Telecom MPPT solar charge controller for telecom base station tower
- Brand Name: IPandee
- Model Number: MASTER-DC12/24/36V/48V-80A
- Rated Voltage: DC12V/24V/36V/48V auto recognition
- Peak effeciency: 99%
- Color: white
- Display: LCD+LED
- 4 Smart key buttons: Yes
- Charge mode: mppt
- Communication port: RS485
- Data set and Monitor: Yes
- 3 charge stages: fast charge, constant voltage, floating charge
- Battery type: General type; others be defined by users
solar system controller 12V/24V/36V48V 80A MPPT solar charge controller
Feature1.It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%，and converter efficiency up to 98%.
2.Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
3.Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control .
4.Battery system voltage automatic recognition.
5.Three kinds of commonly used lead-acid battery (Seal\Gel\Flooded) parameter settings fcan be selected by the user, and the user can also customize the parameters for other battery charging.
6.It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.
7.Support multi - machine parallel to realize system power upgrade.
8.High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.
9.RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development.
10.Support PC software monitoring and WiFi module to realize APP cloud monitoring.
11.CE, RoHS, FCC certifications approved, we can assist clients to pass various certifications.
12.2 years warranty, and 2~10 years extended warranty service also can be provided.
|Product category||Controller Properties||MPPT (maximum power point tracking)|
|System voltage||Automatic recognition||48V|
|Heat-dissipating method||Air cooling|
|Input Characteristics||Max.PV input voltage(VOC)||DC150V||DC300V|
|Start the charge voltage point||Battery voltage + 3V||Battery voltage + 10V|
|Low input voltage protection point||Battery voltage + 2V||Battery voltage + 5V|
|Over voltage protection point||DC150V||DC300V|
|Rated PV power||12V system||1040W||－|
|Charge Characteristics||Selectable Battery Types(Default Gel battery)||Sealed lead acid, Gel battery, Flooded (Other types of the batteries also can be defined)|
|Charge rated current||80A||80A|
|Charging Method||3-Stage: constant current(fast charging)-constant voltage-floating charge|
|LOAD Characteristics||Load voltage||The same as the battery voltage|
|Load rated current||80A||80A|
|Load control mode||On\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode|
|Display & Communication||Display mode||High-definition LCD segment code backlight display|
|Communication mode||8-pin RJ45 port/RS485/support PC software monitoring/support WiFi module to realize APP cloud monitoring|
|Other Parameters||Protect function||Input-output over \ under voltage protection,Prevention of connection reverse protection,battery shedding protection etc.|
|Max. connection size||50mm2|
|Net Weight (kg)||7.1|
|Gross Weight (kg)||8.8|

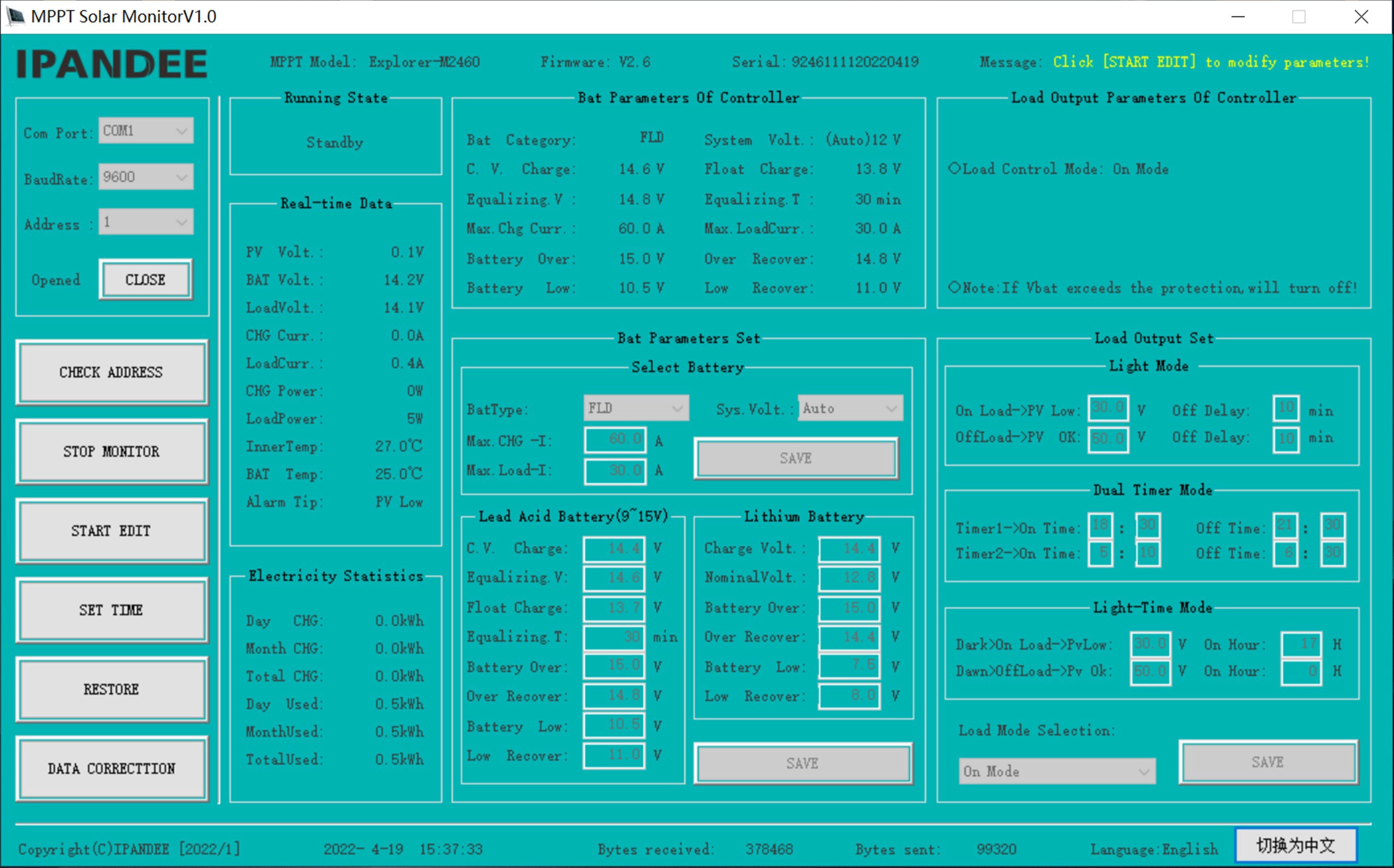

Upper Computer Software and Test Software

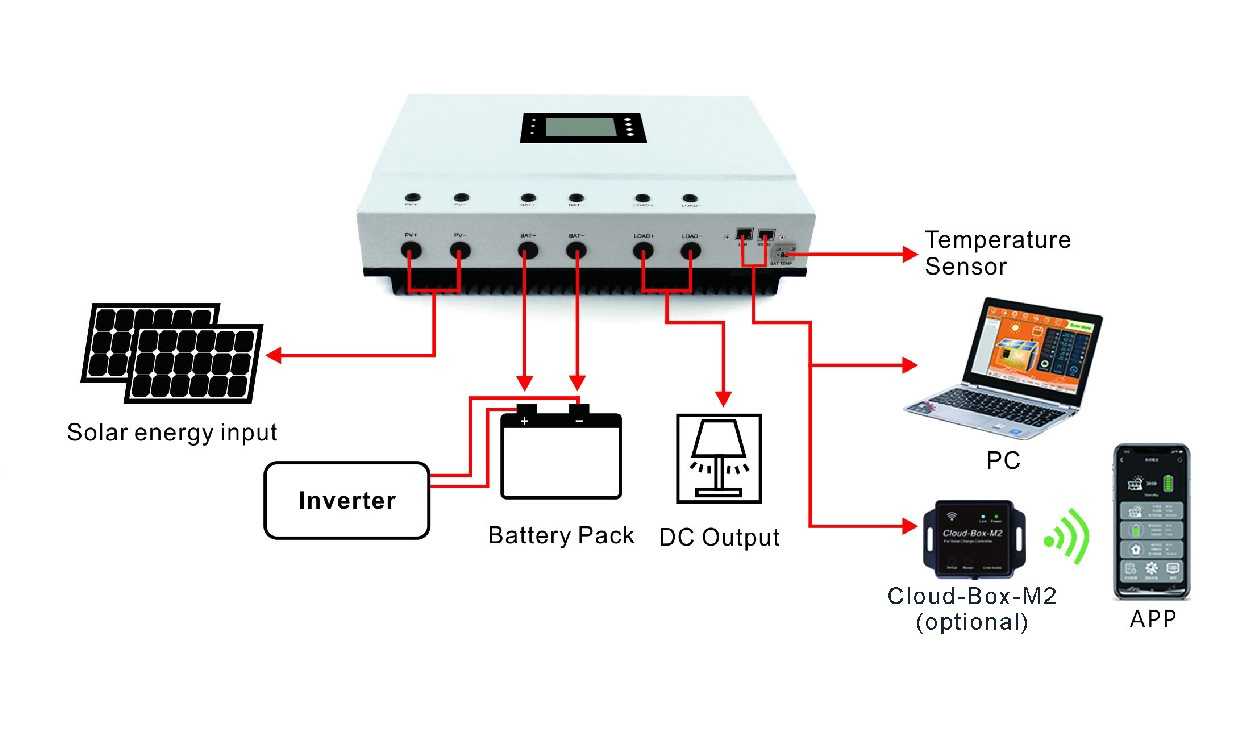

System connection diagram

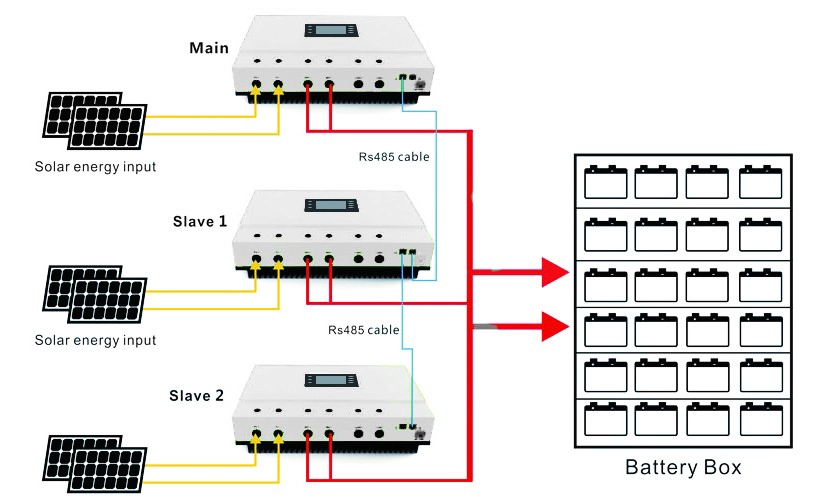

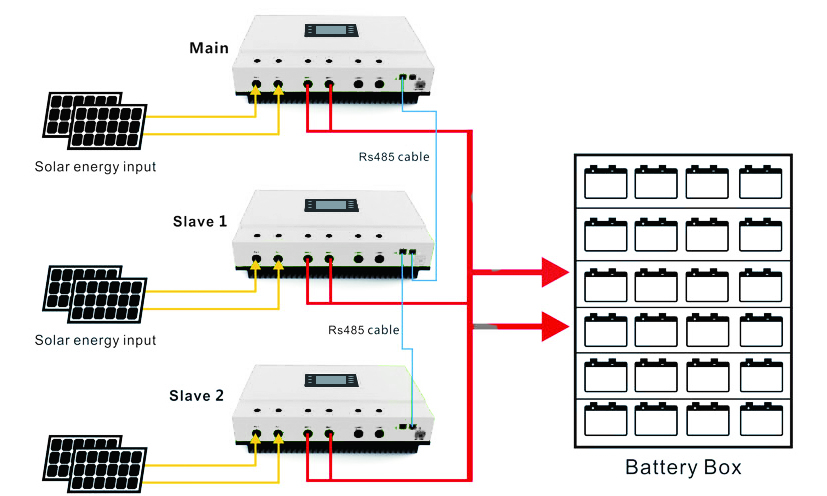

Parallel connection diagram
